The Pixelscreen E3.9N is an HD Led screen with a pixel pitch of 3,9mm.

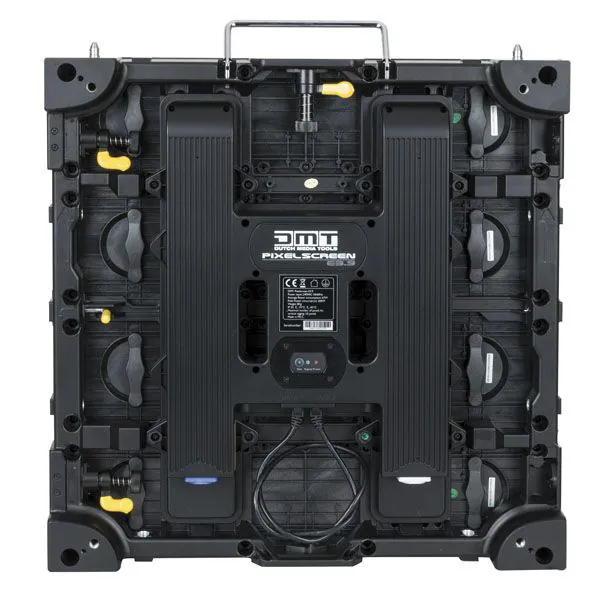

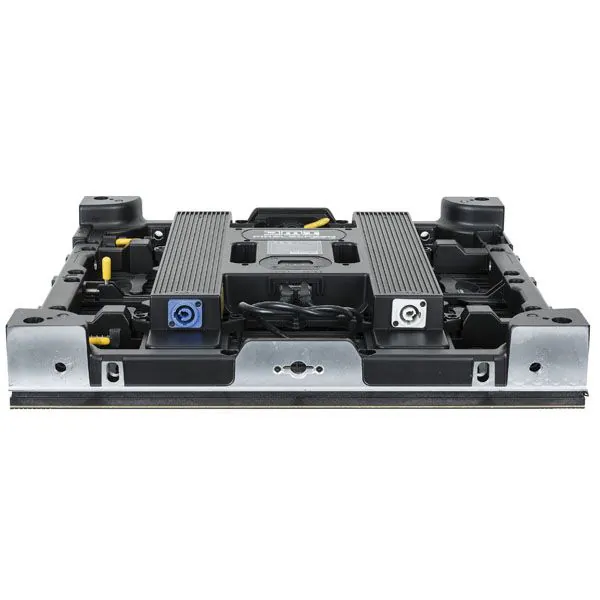

It has a lightweight and modular design and is suitable for a wide range of applications. Mechanical connection is easy and fast due an innovative quick lock system. The power- and data box can be removed easily in order to ensure fast service at any time. On the backside of the panel there are two status LEDs. One to indicate the power connection and a second one to indicate the data connection. Power connection is done through a blue and white power connector. Data by RJ45 connectors. An ergonomic carrying handle is present on the top of the screen.
| Power Supply | 200 – 240 VAC |
|---|---|
| Weight | 9 kg |
| Connection Data | RJ45 |
| Certification | CE, EMC, LVD, FCC, ETL, RoHS |
| IP Rating | IP 20 |
| Refresh Rate | >2000 Hz |
| Cooling | Convection |
| Ambient Temp. | -10 ~ +45 °C |
| Viewing Angle | 140 x 140 ° |
| Pixel Pitch | 3.91 mm |
| Pixels per Cabinet | 128 x 128 px |
| LED light Source | SMD2020 Black Frame |
| Pixels per Module | 128 x 32 px |
| Dimensions Module | 500 x 125 mm |
| Dimensions Cabinet | 500 x 500 x 78 mm |
| Luminance | 1500 Nit |
| Power Consumption Max. | 168 W |
| Power Consumption Average | 56 W |
| Cabinet Ratio | 1:1 |
| Rigging Vertical Max. | 20 panels |
| Curved Angles | N/A |
| Control System | Novastar |
| Transparency | 0 % |
| Receiving Card | MRV 220-2 |
| Connection Power | Neutrik PowerCon |
| Locking System | Fast Lock System |
